Broken Bridge Three-Track Sliding Window

  •  Brand Name: OMD
  •  Opening Style:  Sliding
  •  Thermal Insulation:  U≤ 0.5W/㎡K
  •  Acoustic Performance:  ≤ 45 DB
  •  Air Tightness:  ≤ 0.4m³(㎡h)
  •  Wind Load Resistance:  ≥ 2.8 KPa
  •  Water Penetration:  ≥ 450Pa
  •  Standard:NFRC,NAMI,AAMA,NAFS,CSA,AS2047,CE,EN
  •  Warranty: 10 Years
  •  Application: Residential, Commercial
  •  Performance: Thermal Broken, Soundproof
  •  Main Market: Sweden，Finland，Norway，Denmark，Russia，Canada，United States，Germany，Austria，Switzerland，Japan

Technical Specs

  • PICC Property Insurance provides greater security and assurance
  • Nano hollow aluminum strips with integrated bending technology, moisture-proof molecular sieves are poured into the aluminum strips to prevent the glass from fogging and mold
  • Wide blade design, strong and durable

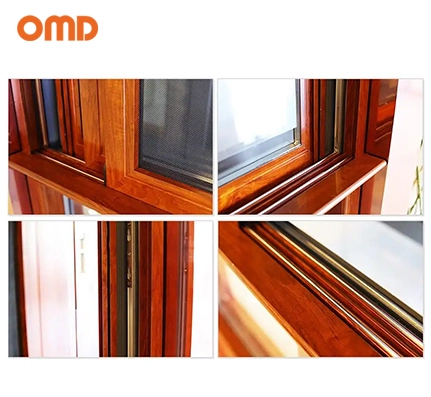

  • Precise 45-degree assembly process, hollow sound insulation cavity, no glue required outdoors
  • High and low rail design, strong wind pressure resistance, three-layer sealing design, waterproof and silent

Color & Coating options

  • OMD Commen Color: Frosted Black, White Powder Coating
  • Silver grey powder coating, Silver anodising with INTERPON powder
  • Woodland grey(Satin), Ironstone(Stain), Shale Grey(Satin)
  • Ultra Silver(Gloss), Dune(Sain), Paperbark(Satin), Primrose(Gloss)
  • White Birch(Gloss), Surfmist(Matt), Architectural White(Satin)
  • Pearl White(Gloss), Silver Pearl Kinetic(Satin), Black(Satin)
  • Monument(Matt), Clear, Residential Bronze
  • Cedar, Mahogany, Honey Gum, Snow Gum
  • Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.

Glass Options

  • Single Glass(5mm, 6mm, 8mm, 10mm….)
  • Laminated Glass(5mm+0.76pvb+5mm)
  • Double Toughened Glass(5mm+12air+5mm)
  • Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
  • Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
  • Thickness of single glass: 5-20mm
  • Glass types: Frosted glass, Toughened glass, Low-e coated glass
  • Special performance glass: Fireproof glass, Bulletproof glass
  • Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof.

Screen Options

  • Screen Types: Stainless Steel Mesh, Fiberglass Screen, Retractable Screen
  • Fly and insect screen is a great way to keep insects out of your home
  • All fly screens are supplier with fibreglass mesh as standard
  • Midrail and handle hights depend on customer requirements
  • Fixed Screen is easy installation and removal
  • In-swing Screen can help you enjoy nature and keep the bugs out
  • Rolling Screen let you enjoy an unobstructed view when rulled up
  • The mesh screen is color coated together with the window to match perfectly.
  • Our screens are manufactured using aluminum alloy; strong enough to keep the mesh tight for years to come.

Grille Options

  • Minimalist symmetrical grille: horizontal and vertical geometric divisions, suitable for modern and industrial style buildings.
  • Chinese carved grille: traditional window lattice, diamond/arc carvings, suitable for courtyards and retro villas.
  • Invisible narrow-frame grille: 5-10mm ultra-thin aluminum frame, weakened presence, with panoramic floor-to-ceiling windows.
  • Anti-theft protection grille: thickened aluminum (1.5-2.0mm) + anti-theft lock point, dedicated to low-rise residential buildings/shops.
  • Adjustable ventilation grille: Rotatable blade design, flexible control of airflow (recommended for bathroom/sunroom).
  • Energy-saving thermal break grille: thermal break aluminum + insulating glass, heat insulation and noise reduction, in line with energy-saving building standards.
  • Material: anodized (champagne gold/titanium air gray), fluorocarbon spraying (200+ colors available).
  • Technology: 3D stamping texture, CNC precision cutting (error ≤ 0.2mm).

Hardwares&Accessories Options

  • Shenzhen Haobo
  • American Shimek Hardware
  • Italian Reguiti Hardware
  • German Grid House Hardware
  • German SIEGENIA Hardware
  • German Stanford Hardware
  • German Noto Hardware
  • Denmark Stamford Hardware
  • Belgium Sobinco Hardware

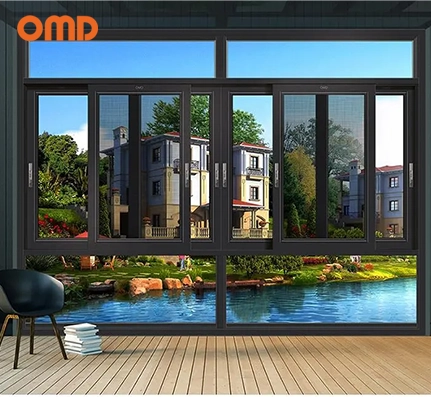

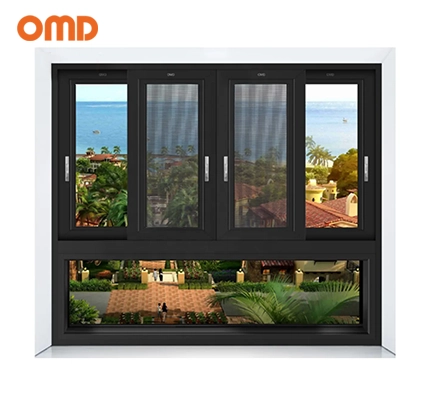

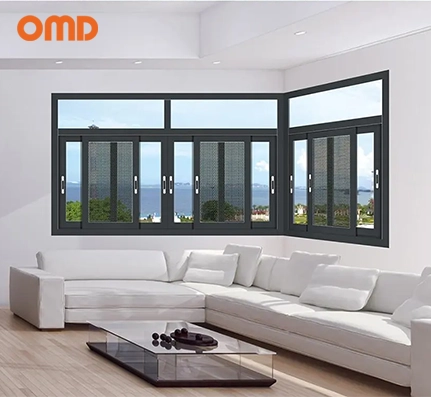

Broken Bridge Three-Track Sliding Window

Since its establishment, OMD has always been committed to providing innovative product solutions. Our bridge-breaking triple-track sliding windows, with bridge-breaking aluminum technology, effectively block heat transfer and provide excellent thermal insulation to ensure comfortable indoor temperatures and energy savings. The triple-track design allows the window to open to a larger area for better ventilation, satisfying your need for air circulation. In addition, the inward opening design of the window facilitates easy cleaning and maintenance, and the magnetic screen effectively prevents insects from entering and enhances living comfort.

Customize Your Broken Bridge Three-Track Sliding Window

OMD’s bridge-breaking triple-track sliding windows combine advanced bridge-breaking aluminum alloy technology with superb craftsmanship and design to bring superior thermal, acoustic, and security performance to your space.
Product Highlights:
Excellent thermal insulation performance: Adopting broken bridge aluminum alloy technology, effectively blocking the exchange of heat between inside and outside, maintaining a constant indoor temperature and enhancing the comfort of living.
Excellent sound insulation: High-quality sealing design significantly reduces external noise interference, creating a quiet living environment.
Modern aesthetic design: simple and generous appearance, perfect integration of various home styles, enhance the overall aesthetic sense of space.
Energy efficient: Excellent thermal insulation reduces the use of air conditioning and heating equipment, reducing energy consumption and saving money.
Customized service: We offer a wide range of materials, colors and styles to ensure that the windows fit perfectly into your home.
Contact us today to customize your broken bridge triple track sliding windows.
Get A Free Sample Now
Q1: What locations are your aluminum doors and windows suitable for?

A:Our aluminum doors and windows are suitable for residential, commercial spaces, patios, balconies, large openings, and more, combining practicality and aesthetics.

A:Yes, we provide customization services for size, color, style, and functionality to meet your specific needs.

A:We specialize in the research and production of aluminum doors and windows, with over 100 technical patents. Our products have the following advantages:

  • Durability: Aluminum alloy materials offer excellent corrosion resistance and wind pressure performance.
  • Energy-efficient: We use highly efficient thermal insulation and soundproofing materials to enhance indoor comfort and save energy.
  • High safety: Our doors and windows are designed with safety in mind, using high-quality glass and hardware accessories.
  • Aesthetic variety: We offer various styles and customization options to meet the needs of different customers.

A:We offer a 10-year warranty on all products, along with lifetime online support. We also provide on-site installation services to ensure proper installation and long-term use.

A:Absolutely! We comply with:

  • EU: CE, EN 14351-1

  • US: AAMA, ASTM E1886

  • Australia: AS2047

  • Others: Custom certifications available upon request

A:◆ Standard orders: 15-20 working days after deposit
     ◆ Full customization: 25-30 working days (with real-time production updates)
     ◆ Large projects: Dedicated production line for 10,000+ units/monthA:

A:✓ Material: 6063-T5 aluminum, imported hardware (Hoppe, GU, etc.)
    ✓ Testing: Air/water/wind pressure tests, on-site QC inspections
    ✓ Warranty: 10 years on profiles, 5 years on hardware
