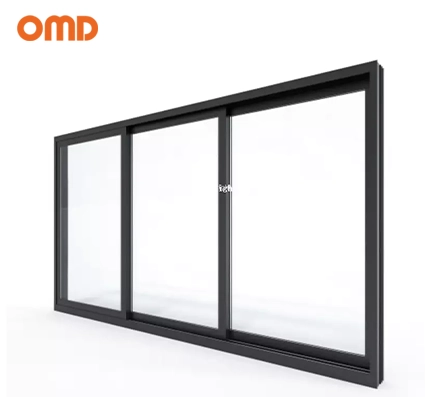

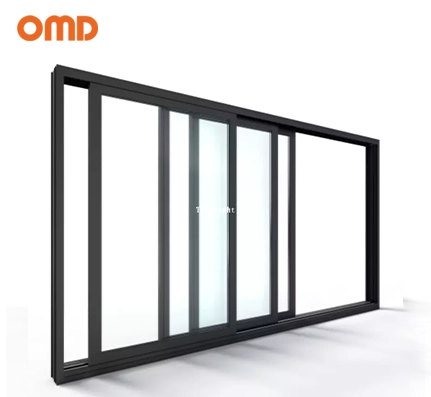

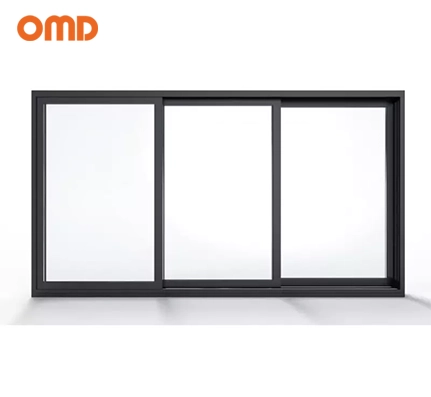

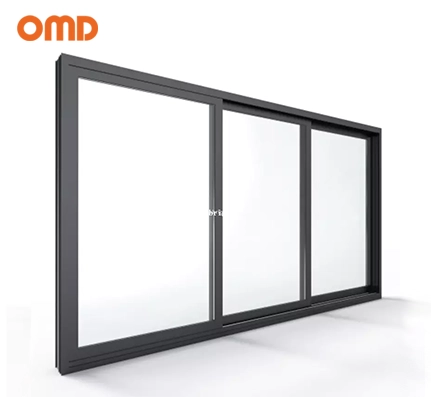

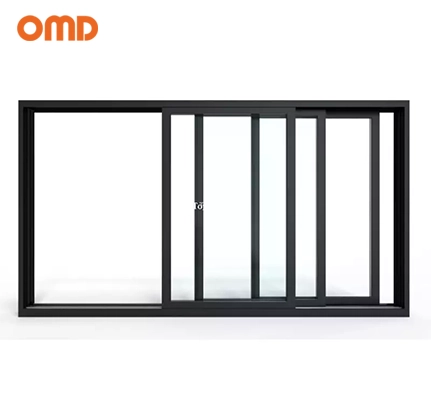

Broken Bridge Six-Track Sliding Window

  •  Brand Name: OMD
  •  Opening Style:  Sliding
  •  Thermal Insulation:  U≤ 0.5W/㎡K
  •  Acoustic Performance:  ≤ 45 DB
  •  Air Tightness:  ≤ 0.4m³(㎡h)
  •  Wind Load Resistance:  ≥ 2.8 KPa
  •  Water Penetration:  ≥ 450Pa
  •  Standard:NFRC,NAMI,AAMA,NAFS,CSA,AS2047,CE,EN
  •  Warranty: 10 Years
  •  Application: Residential, Commercial
  •  Performance: Thermal Broken, Soundproof
  •  Main Market: Sweden，Finland，Norway，Denmark，Russia，Canada，United States，Germany，Austria，Switzerland，Japan

Technical Specs

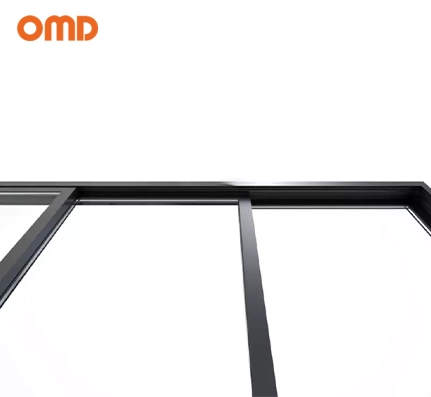

  • Embedded frame-wrapped sash design, the sash is completely hidden in the frame
  • The maximum single door can open 2.5 square meters, and the screen fan can be installed inside or outside freely
  • The entire frame span can reach 5.8 meters, easily achieving a super wide field of view
  • Equipped with detachable armrests and ambient light strip design, stylish, beautiful and practical
  • Six tracks with yarn, each fan uses 304 stainless steel rails, double track structure, equipped with anti-theft and anti-drop upper pulleys, push and pull smoothly and firmly, eliminating the risk of fan falling
  • Multi-channel sedimentation drainage design, beautiful and atmospheric
  • The optional lower rail has a wall thickness of 6.0mm, which can bear a large weight and has a stronger ability to resist wind pressure.

Color & Coating options

  • OMD Commen Color: Frosted Black, White Powder Coating
  • Silver grey powder coating, Silver anodising with INTERPON powder
  • Woodland grey(Satin), Ironstone(Stain), Shale Grey(Satin)
  • Ultra Silver(Gloss), Dune(Sain), Paperbark(Satin), Primrose(Gloss)
  • White Birch(Gloss), Surfmist(Matt), Architectural White(Satin)
  • Pearl White(Gloss), Silver Pearl Kinetic(Satin), Black(Satin)
  • Monument(Matt), Clear, Residential Bronze
  • Cedar, Mahogany, Honey Gum, Snow Gum
  • Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.

Glass Options

  • Single Glass(5mm, 6mm, 8mm, 10mm….)
  • Laminated Glass(5mm+0.76pvb+5mm)
  • Double Toughened Glass(5mm+12air+5mm)
  • Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
  • Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
  • Thickness of single glass: 5-20mm
  • Glass types: Frosted glass, Toughened glass, Low-e coated glass
  • Special performance glass: Fireproof glass, Bulletproof glass
  • Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof.

Screen Options

  • Screen Types: Stainless Steel Mesh, Fiberglass Screen, Retractable Screen
  • Fly and insect screen is a great way to keep insects out of your home
  • All fly screens are supplier with fibreglass mesh as standard
  • Midrail and handle hights depend on customer requirements
  • Fixed Screen is easy installation and removal
  • In-swing Screen can help you enjoy nature and keep the bugs out
  • Rolling Screen let you enjoy an unobstructed view when rulled up
  • The mesh screen is color coated together with the window to match perfectly.
  • Our screens are manufactured using aluminum alloy; strong enough to keep the mesh tight for years to come.

Grille Options

  • Minimalist symmetrical grille: horizontal and vertical geometric divisions, suitable for modern and industrial style buildings.
  • Chinese carved grille: traditional window lattice, diamond/arc carvings, suitable for courtyards and retro villas.
  • Invisible narrow-frame grille: 5-10mm ultra-thin aluminum frame, weakened presence, with panoramic floor-to-ceiling windows.
  • Anti-theft protection grille: thickened aluminum (1.5-2.0mm) + anti-theft lock point, dedicated to low-rise residential buildings/shops.
  • Adjustable ventilation grille: Rotatable blade design, flexible control of airflow (recommended for bathroom/sunroom).
  • Energy-saving thermal break grille: thermal break aluminum + insulating glass, heat insulation and noise reduction, in line with energy-saving building standards.
  • Material: anodized (champagne gold/titanium air gray), fluorocarbon spraying (200+ colors available).
  • Technology: 3D stamping texture, CNC precision cutting (error ≤ 0.2mm).

Hardwares&Accessories Options

  • Shenzhen Haobo
  • American Shimek Hardware
  • Italian Reguiti Hardware
  • German Grid House Hardware
  • German SIEGENIA Hardware
  • German Stanford Hardware
  • German Noto Hardware
  • Denmark Stamford Hardware
  • Belgium Sobinco Hardware
  • OMD always choose seriously hardwares&accessories for customers with 10 years warran

Broken Bridge Six-Track Sliding Window

OMD’s six-track sliding window integrates Broken Bridge Aluminum for superior thermal, acoustic, and sealing performance.

Features:

  • Thermal Insulation: Inserts block heat conduction for better energy efficiency.
  • Six-Track Sliding: Multi-sash opening for enhanced ventilation and lighting.
  • Premium Materials: 3C-certified tempered glass + custom hardware for durability.
  • Modern Design: Sleek look with a wide, bright view.

OMD delivers innovative, high-quality windows, showcasing our expertise in design and technology.

Customize Your Broken Bridge Six-Track Sliding Window

OMD’s broken bridge six-track sliding windows are customized for those of you who pursue a high quality of life.
Customized highlights:
Space optimization: The six-track design provides a larger opening area, improves the ventilation effect, and meets your personalized demand for space.
Excellent heat and sound insulation: Adopting broken bridge aluminum alloy technology, effectively blocking internal and external heat and noise, maintaining a comfortable indoor environment.
Variety of choices: A wide range of materials, colors and styles are available to ensure perfect integration with your home style.
Energy efficient: Excellent thermal insulation reduces the use of air conditioning and heating equipment, reducing energy consumption and saving money.
Contact us today to customize your six-track sliding windows!
Get A Free Sample Now
Q1: What locations are your aluminum doors and windows suitable for?

A:Our aluminum doors and windows are suitable for residential, commercial spaces, patios, balconies, large openings, and more, combining practicality and aesthetics.

A:Yes, we provide customization services for size, color, style, and functionality to meet your specific needs.

A:We specialize in the research and production of aluminum doors and windows, with over 100 technical patents. Our products have the following advantages:

  • Durability: Aluminum alloy materials offer excellent corrosion resistance and wind pressure performance.
  • Energy-efficient: We use highly efficient thermal insulation and soundproofing materials to enhance indoor comfort and save energy.
  • High safety: Our doors and windows are designed with safety in mind, using high-quality glass and hardware accessories.
  • Aesthetic variety: We offer various styles and customization options to meet the needs of different customers.

A:We offer a 10-year warranty on all products, along with lifetime online support. We also provide on-site installation services to ensure proper installation and long-term use.

A:Absolutely! We comply with:

  • EU: CE, EN 14351-1

  • US: AAMA, ASTM E1886

  • Australia: AS2047

  • Others: Custom certifications available upon request

A:◆ Standard orders: 15-20 working days after deposit
     ◆ Full customization: 25-30 working days (with real-time production updates)
     ◆ Large projects: Dedicated production line for 10,000+ units/monthA:

A:✓ Material: 6063-T5 aluminum, imported hardware (Hoppe, GU, etc.)
    ✓ Testing: Air/water/wind pressure tests, on-site QC inspections
    ✓ Warranty: 10 years on profiles, 5 years on hardware
