How Aluminum Profile Design Influences the Performance of Modern Windows and Doors

Understanding the Role of Aluminum Profiles in Door and Window Systems

What Is an Aluminum Profile in the Context of Windows and Doors?

Aluminum profiles are the core components of window and door systems. Beyond providing structural support for glass and connecting to the building envelope, they directly influence the system’s appearance, sealing performance, and service life. In modern fenestration design, the quality of aluminum profiles determines overall stability and energy efficiency. Common profiles are extruded from high-strength aluminum alloys such as 6063-T5 or T6. Their cross-sectional design, wall thickness, and internal chamber configuration play a critical role in thermal insulation, air tightness, water tightness, and wind load resistance.

Why Profile Design Matters Beyond Just Aesthetics

While sleek lines and narrow sightlines are important for modern architecture, the profile’s internal structure plays a more critical role. Factors like multi-chamber configurations, thermal break barriers, wall thickness, and sealing grooves determine how well the window or door resists heat, wind, noise, and water. In short, design isn’t just for looks—it’s for performance.

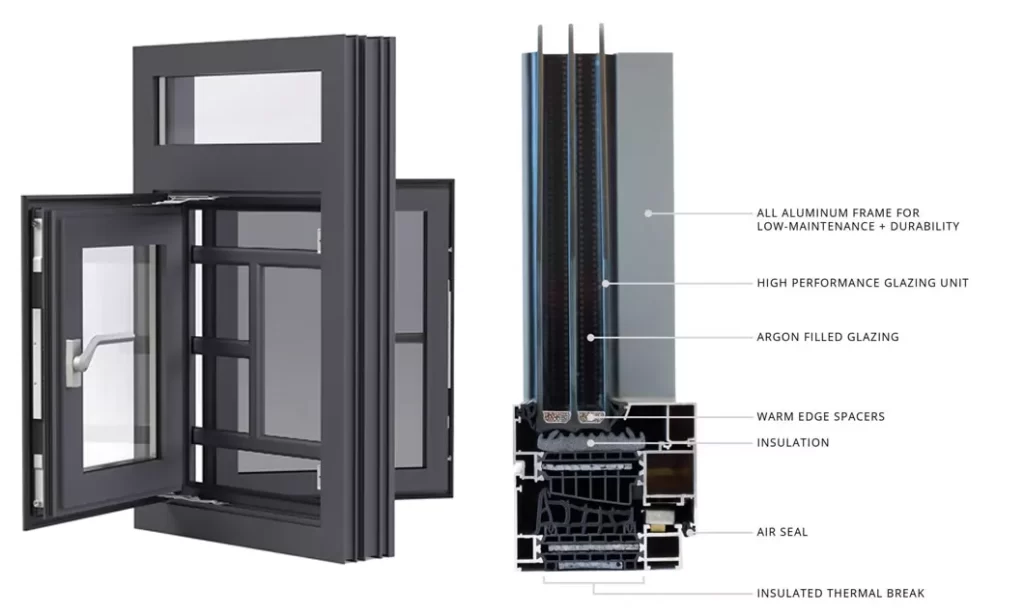

Multi-chamber thermal break aluminum window profile with insulation strip

Key Aluminum Profile Design Factors That Affect Performance

Multi-Chamber Structures and Internal Reinforcement

High-performance windows and doors typically use multi-chamber aluminum profiles. These internal chambers not only enhance structural strength but also play a key role in thermal insulation and sound reduction. The more refined the chamber design, the better the insulation and acoustic performance. Reinforcement elements such as steel inserts can also be integrated to support large glass panels or heavy sashes, improving overall system stability and safety.

Wall Thickness and Its Impact on Wind Load and Safety

Wall thickness is a fundamental factor in profile design. Thicker walls (1.6 mm and above) improve structural rigidity, allowing profiles to resist deformation under high wind pressure—a key consideration in coastal or high-rise projects. It’s important to note that although thin-wall profiles may look similar to standard ones, their structural performance is significantly lower, and they are more prone to deformation under stress, posing potential safety risks.

Thermal Break Design for Better Energy Efficiency

In thermal break systems, a polyamide (nylon) barrier is inserted between the inner and outer sections of the aluminum profile. This drastically reduces heat transfer and improves U-values. Well-designed thermal breaks contribute to year-round energy savings and better climate control in interior spaces.

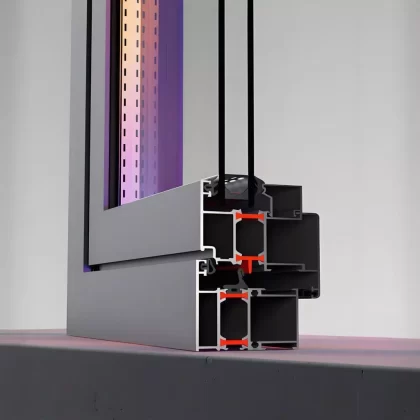

Aluminum profile with thermal barrier for energy-efficient window systems

Real-World Performance Metrics Influenced by Profile Design

Airtightness and Watertightness in High-Performance Projects

High-performance windows and doors require highly precise sealing structures. The profile grooves must be accurately matched with EPDM or silicone gaskets to ensure excellent air and water tightness. This is especially critical in regions prone to typhoons and heavy rainfall, effectively preventing water leakage and indoor humidity while enhancing the overall weather resistance of the window system.

Sound Insulation and Profile Sealing Systems

Profile design plays a critical role in the acoustic performance of window systems. By incorporating a multi-chamber structure, high-performance sealing systems, and double or triple insulated glazing units, noise transmission can be significantly reduced, greatly improving sound insulation. This structural solution is especially suitable for buildings with higher acoustic requirements—such as urban residences, hotels, and schools—helping to create a quieter and more comfortable indoor environment.

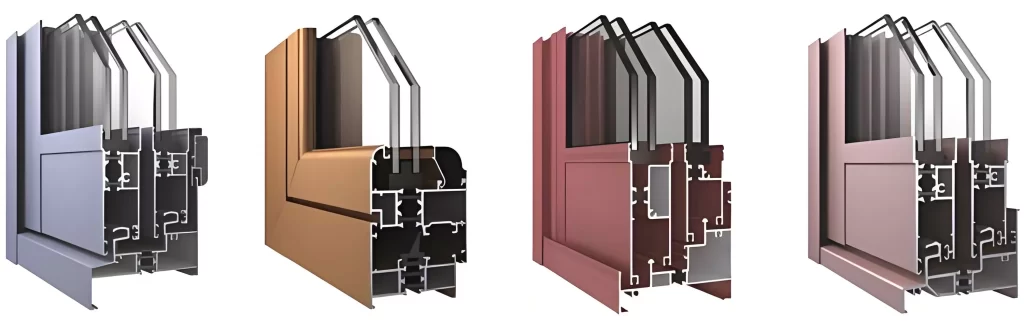

Standard vs custom aluminum window profiles with structural difference

Choosing the Right Aluminum Profile for Your Project Needs

Aluminum profiles are not a one-size-fits-all solution. Architects, contractors, and developers should select profile systems based on the project’s geographic location, building height, window and door dimensions, and performance requirements. For example, coastal resort hotels should prioritize profiles with corrosion resistance, increased wall thickness, and superior sealing performance to withstand humid, high-salt environments. In contrast, urban apartments often emphasize minimalist aesthetics and strong thermal insulation to balance design and energy efficiency.

To ensure long-term system stability and performance, it is recommended to work with specialized profile manufacturers that offer customization capabilities. Manufacturers with in-house extrusion, structural design support, and comprehensive performance testing can provide better compatibility, more reliable quality control, and more consistent delivery throughout the project.
